Industrial Minerals

Bentonite

Al2O3·4SiO2·H2O
Bentonite
Industrial MineralsBentonite
Scroll to Explore
Product Overview

About Bentonite

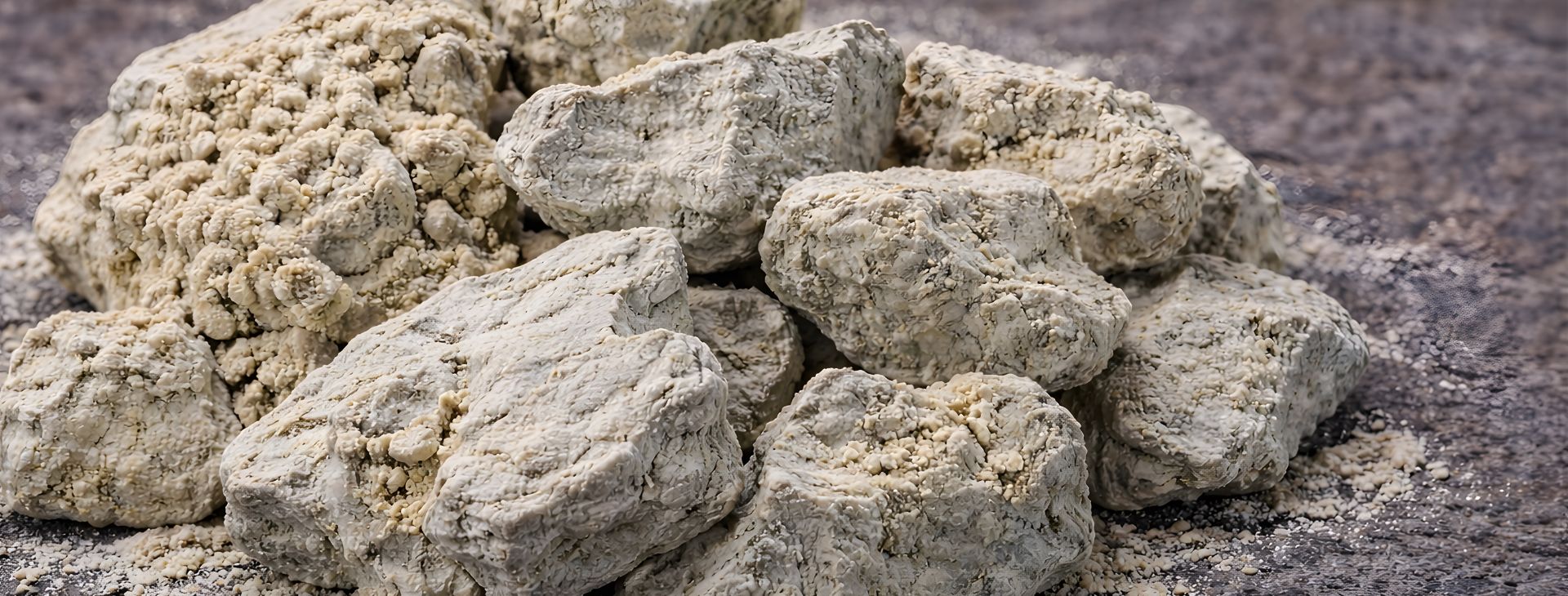

Bentonite is a naturally occurring clay composed primarily of montmorillonite , a layered alumino-silicate mineral known for its exceptional swelling, absorbency, and binding characteristics . When hydrated, bentonite forms a thixotropic gel , making it an essential functional material across a wide range of industrial applications.

Due to its rheological control , sealing ability, and chemical stability , bentonite is widely used in drilling fluids, foundry molding sands, iron ore pelletizing, civil engineering, and environmental protection systems . Its natural origin and cost-effectiveness further enhance its value in demanding industrial processes.

Advantages

Key Benefits

Why Bentonite is preferred across demanding industrial formulations.

01

High swelling capacity: Expands significantly upon hydration, enabling effective sealing and viscosity control.

02

Excellent binding strength: Provides strong inter-particle bonding in foundry sands and pelletized materials.

03

Thixotropic rheology: Forms stable gels that flow under shear and recover structure at rest.

Bentonite benefitsPerformance engineered by 20 Microns
04

Cation exchange capability: Enables adsorption of impurities, metals, and charged species in treatment processes.

05

Chemical and pH stability: Remains stable over a broad pH range and under most industrial conditions.

06

Cost-efficient natural mineral: Delivers functional performance while optimizing formulation economics.

Quality AssuredISO Certified
Lab TestedEvery Batch
ResponsibleSustainable
Global DeliveryWorldwide
Product Range

Available Grades

01

Sodium Bentonite

High-swelling grade for drilling fluids, sealing, and environmental applications.

02

Calcium Bentonite

Lower-swelling grade used as filler , absorbent, and carrier material.

03

API-13A Drilling Grade

Engineered to meet oil & gas industry specifications.

04

Foundry Grade Bentonite

Optimized for green sand mold strength and thermal stability.

05

Pelletizing Grade Bentonite

Designed for iron ore pellet production.

06

Activated Bentonite Acid-activated clay used as bleaching earth (covered separately below).

Solutions

Product Applications

Bentonite supports a broad range of industrial processes and finished-product requirements.

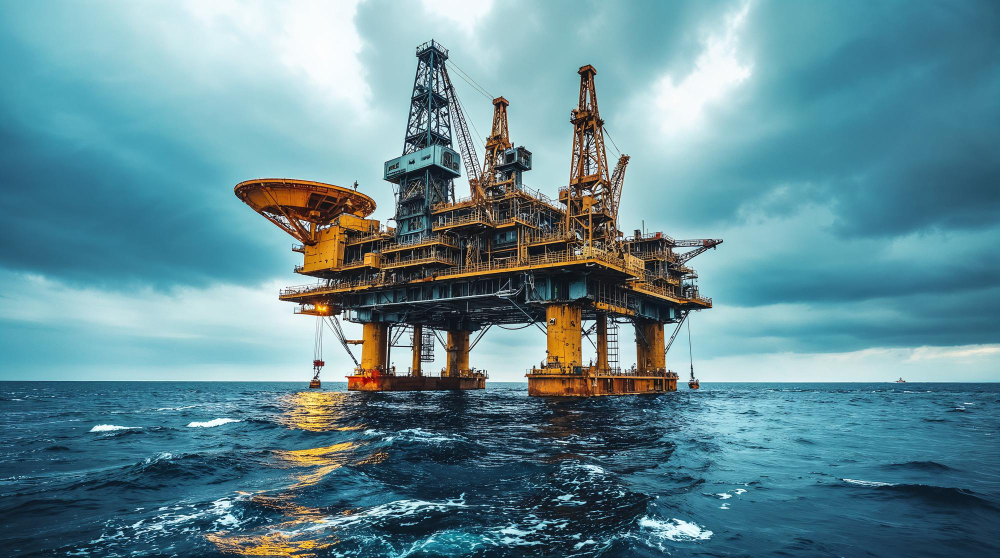

Oil & Gas Drilling
01

Oil & Gas Drilling

Used as a key component in drilling fluids to: Stabilize borehole walls, Control fluid loss, Suspend cuttings and cool drill bits.

Bentonite

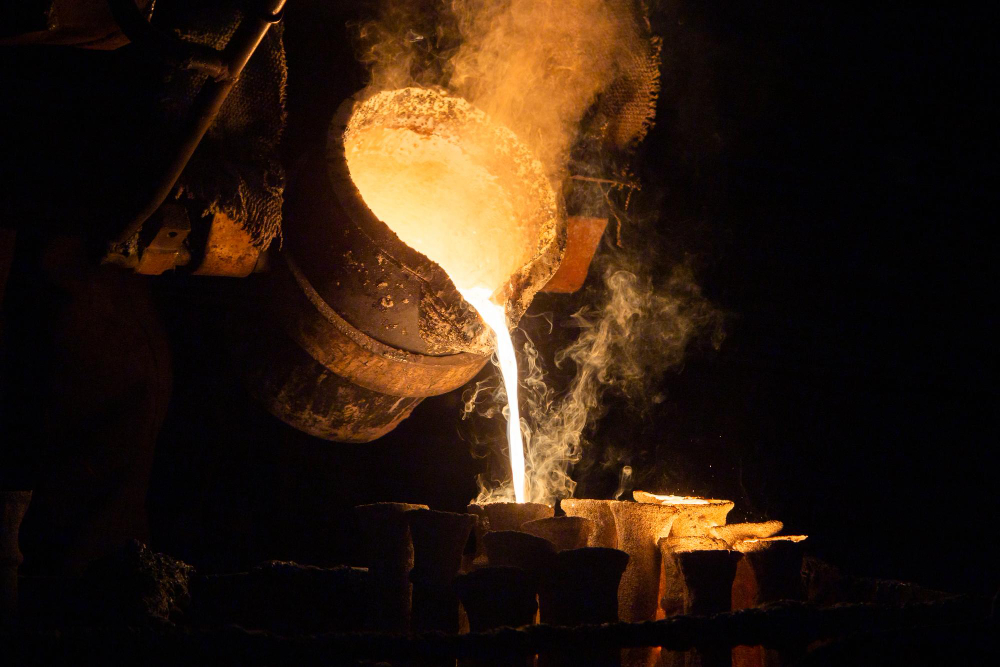

Foundry & Metal Casting
02

Foundry & Metal Casting

Acts as a binder in green sand systems, improving: Mold strength, Dimensional stability, Casting surface finish.

Bentonite

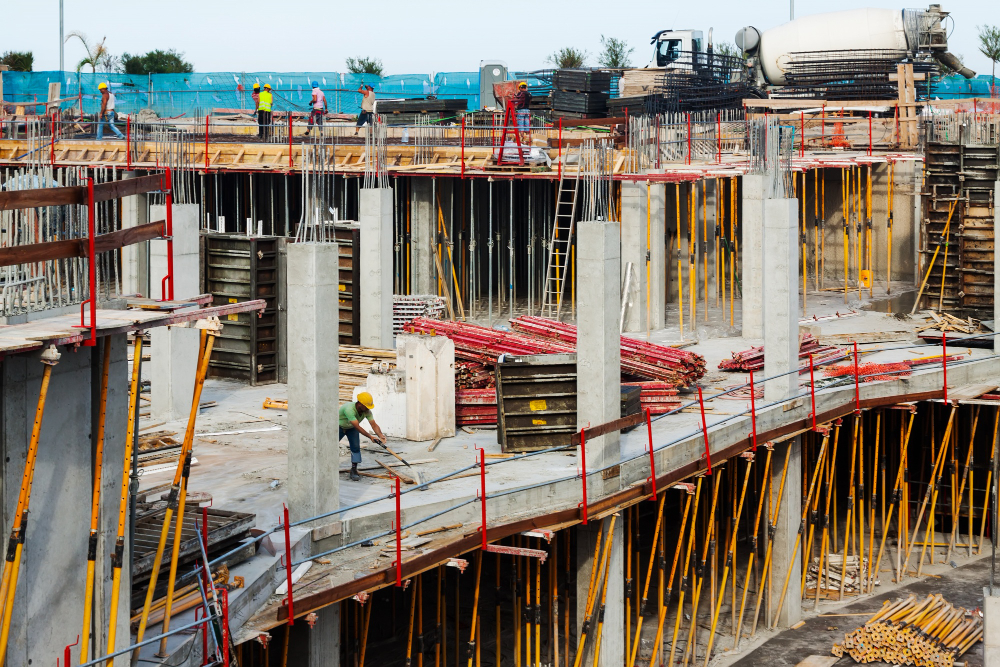

Construction & Civil Engineering
03

Construction & Civil Engineering

Applied for: Slurry walls and diaphragm walls, Foundation sealing and grouting, Groundwater containment and seepage control.

Bentonite

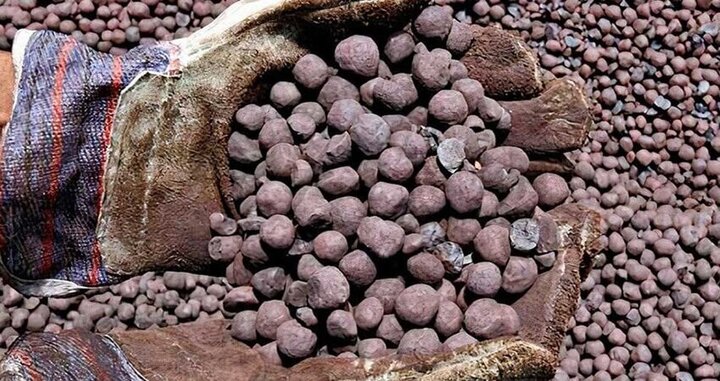

Iron Ore Pelletizing
04

Iron Ore Pelletizing

Functions as a binder to agglomerate iron ore fines into mechanically stable pellets for steelmaking.

Bentonite
Agriculture & Livestock
05

Agriculture & Livestock

Applied as: Soil conditioner to improve moisture retention, Binder in animal feed pellets (application-specific grades).

Bentonite
Consumer & Specialty Uses
06

Consumer & Specialty Uses

Selected refined grades are used as absorbents in: Cat litter (odor control), Personal care products (limited cosmetic applications).

Bentonite

Need a Specific Grade for Your Application?

Our experts will guide you to the right bentonite solution.

Request Expert Consultation
Product Markets

Bentonite Markets

Need a Specific Grade for Your Application?

Our experts will guide you to the right bentonite solution.

Request Expert Consultation
Product Support

Frequently Asked Questions

Important information about Bentonite, grades and applications.

Bentonite is used in drilling fluids, foundry molds, construction sealing, environmental liners, and iron ore pelletizing due to its swelling and binding properties.

Sodium bentonite exhibits significantly higher swelling and is preferred for sealing and drilling. Calcium bentonite offers lower expansion and is used where controlled absorbency is required.

It is supplied as powder or granules in bags, jumbo bags, or bulk. Dust-controlled and pelletized forms are available.

Only specifically processed and certified grades should be used in food or pharmaceutical applications. Standard industrial grades are not intended for such use.

Store in a dry, covered environment to prevent moisture uptake and maintain flowability.
